Thaned Pruttivarasin, Narumon Emarat and Kwan Arayathanitkul
Rationale and objective: Physics laboratories often demonstrate simple mathematical relationships — current proportional to voltage (Ohm's law), or distance proportional to time squared in motion. Relationships where one quantity depends on another raised to a very high power are far rarer in lab settings, yet they offer valuable opportunities to teach advanced data analysis beyond straight-line fitting.
Summary: This study investigates whether a common, low-cost electronic component — a 3.6 V Zener diode — can serve as a clean classroom demonstration of such a high-order relationship. When connected in reverse (reverse bias), the diode's current-voltage behaviour was measured using only batteries, standard resistors, and a digital multimeter.

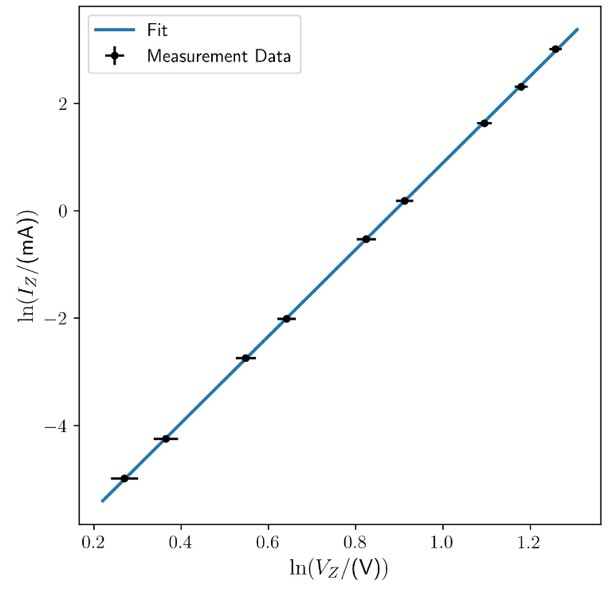

Outcome: The results show that the current through the diode follows the voltage raised to the 8th power (I ∝ V8), confirmed across approximately ten diodes of the same model. Plotting the data on a log-log scale produces a remarkably straight line, making the power-law relationship visually obvious and easy to analyse.
